Ultracurve 1500S is a 381 micron flexible clear vinyl overlaminate, backed with an optically clear pressure-sensitive acrylic adhesive system, specifically engineered to adhere to print media.
Ultracurve® 1500S is a softer version of Ultracurve® 1500, offering superior conformability in applications to curved surfaces.
Tough enough to meet the demands of the NFL and professional sports teams, Ultracurve® 1500S offers the perfect balance of durability and conformability. Its unmatched gloss, clarity, and durability are trusted by the world’s leading helmet decal manufacturers.

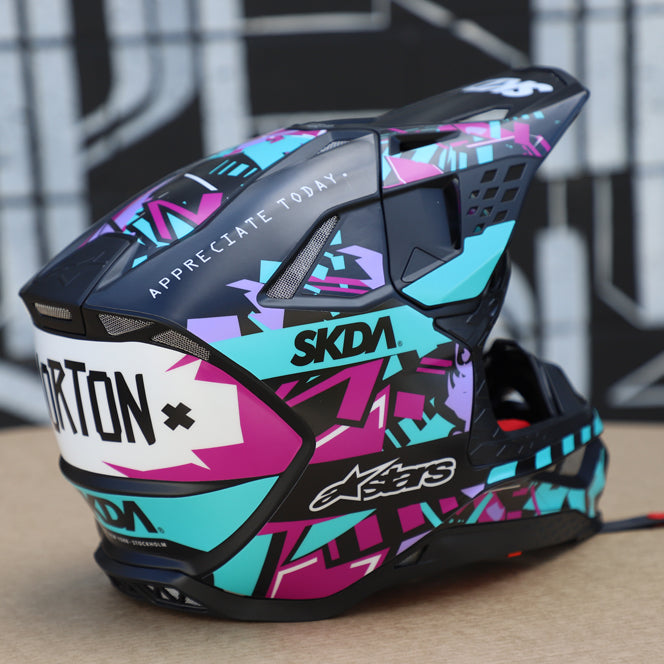

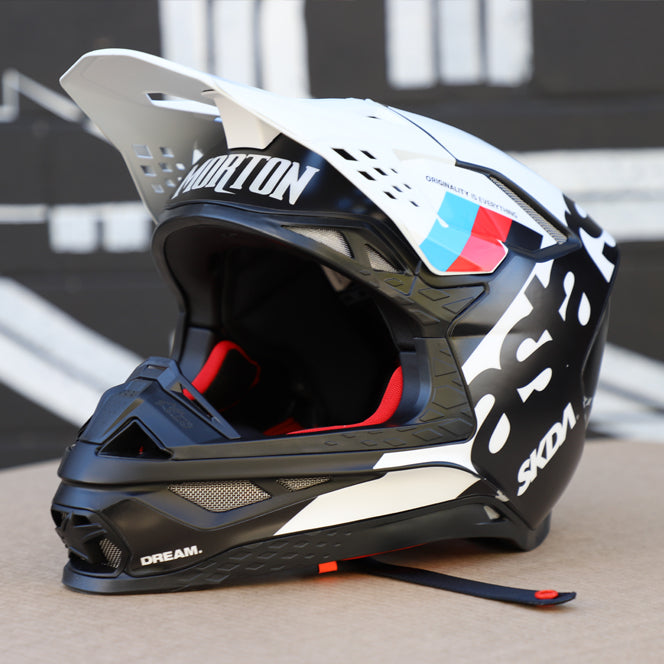

Substance Incorporated recommends the following end uses for Ultracurve 1500S: Market leading graphics for Motocross Bikes and ATVs. Decals and Graphics for Karts, Snowmobiles, and Side-X-Sides. Helmet decals and wraps for MX, Football, Baseball, Lacrosse, Hockey, and Industrial. Demanding industrial applications that require additional impact/abrasion resistance.
|Material||381 micron Engineered Calendered Vinyl|
|Adhesive||Clear Solvent-Based Pressure Sensitive Acrylic|
|Adhesive Thickness||0.056mm +/- 10%|
|Peel Adhesion||24N/25mm from Stainless Steel|
|Liner||90LB Natural Brown PE Coated Layflat Paper|
|Liner Release||32 grams/25mm|
|Dimensional Stability||0.8 mm|
|Application Temp.||5°C to 27°C recommended, test prior to specific application|
|Temperature Range||-53°C to 104°C|
|Shelf Life||6 months when stored at 21°C and 50% relative humidity|
|Graphic Life||Outdoor durability up to 3 years, permanent|
|Chemical Resistence||Resists mild acids, mild akalis, solvents, and salts. Excellent resistance to water, including immersion.|
Before applying an overlaminate, allow 24-48 hours for print to dry. Application surface must be free of dust, dirt, debris, grease, and other contaminants. We highly recommend cleaning the installation surface with isopropyl alcohol prior to application. Mild heat may be used during installation to help Ultracurve 1500S conform to irregular surfaces.
